The Seljuk Han of Anatolia

HEKIM HAN


Built in 1218, this is the only surviving han not built by a member of the Seljuk elite, and the patron is not a Muslim, but a Syriac Christian deacon and doctor. The Hekim Han has a very distinguishing feature:  the trilingual inscription in Arabic, Armenian and Syriac is unique. The han was substantially rebuilt in the 17th century in the Ottoman style, but the astounding "Rosetta Stone" inscription still survives.

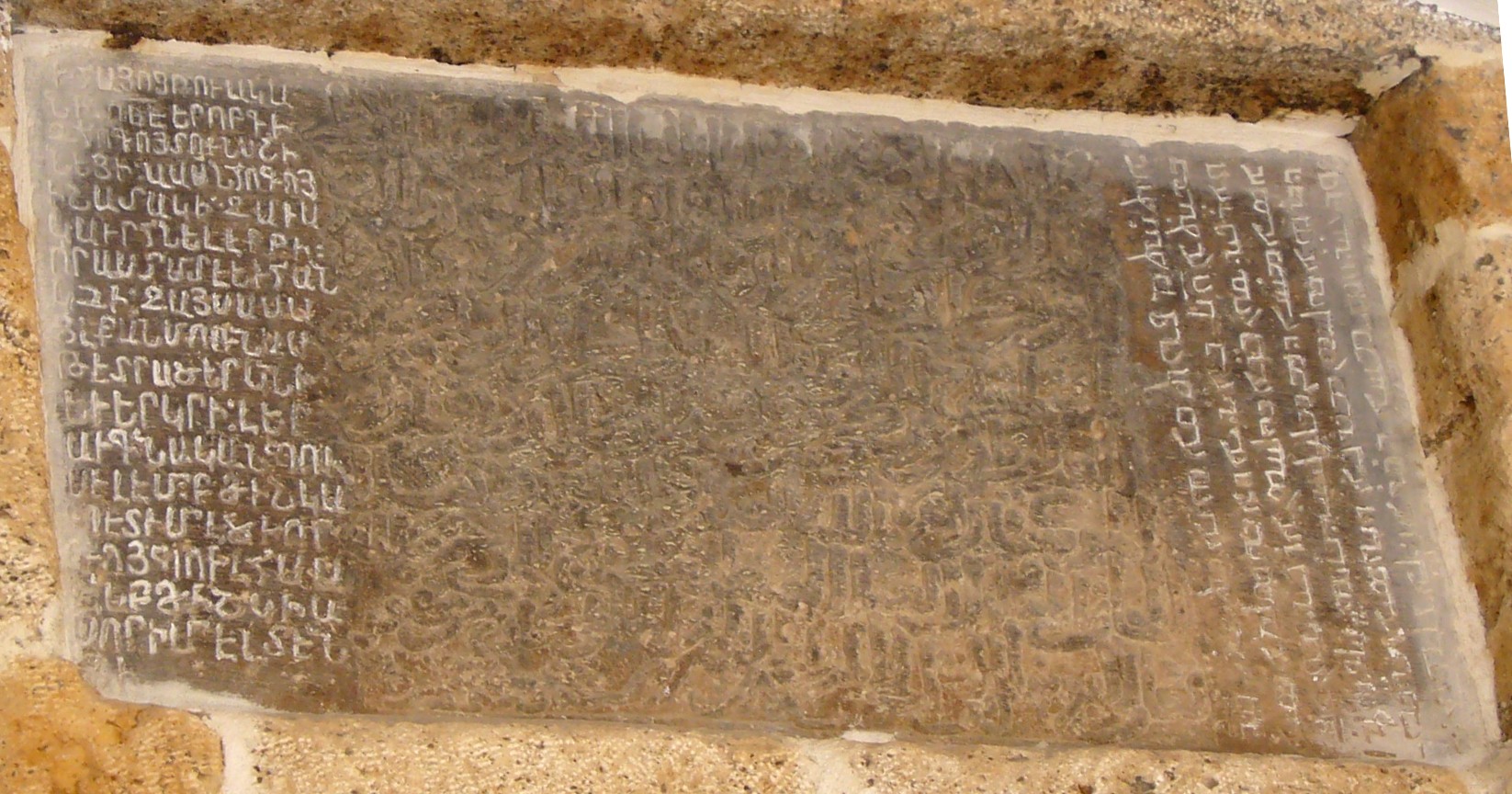

trilingual inscription plaque over the courtyard entrance

Inscription plaque over main entry door

courtyard; view onto covered section

rear view

entry to hamam

plan drawn by Erdmann

DISTRICT

44 MALATYA



LOCATION
The Hekim Han is located on the Malatya-Kangal-Sivas Road, about 50 miles northwest of Malatya, in the middle of the town of the same name, Hekimhan. The old caravan route passed in front of the han and reached Hekimhan through Malatya and Arguvan. The han is situated in a strategic trade location between Sivas and Malatya.


OTHER NAMES
The han is known to the locals as the Taş Han, a name also used in Ottoman sources. It is also known as the Malatya Hekim Han, after the doctor who donated it. Many travelers, such as Brant (1836), Moltke (1838) and Tozer (1881) visited the han and mentioned it in their journals.



DATE
1218-20 (dated by the inscription over the covered section portal)



There are three inscriptions on this han.  It is written in Arabic written in naskh style calligraphy in the middle, Syriac on the right and Armenian on the left. The Arabic inscription, written in large nakshi lettering, gives the construction date of 615 (1218). This inscription establishes the fact that the founder was a Syriac-Christian, furnishes details on his profession and indicates that the han was built as a commercial inn for private gain. The courtyard was not mentioned, but it must have been built two years later, in 1220, during the first year of the reign of Alaeddin Keykubad.



Multi-language Seljuk inscriptions are extremely rare, and the trilingual inscription plaque located above the crown door of the covered section is considered unique. There is only one bilingual Seljuk inscription that has survived until today. It is the 1215 inscription in Arabic and Greek on the front of the tower housing the main gate of the castle of Sinop, which was a Greek-speaking region on the edge of the Black Sea.



A second inscription is located above the main entry door to the han (2.6m wide). The last line of the marble inscription was damaged and cannot be read completely.  However, the legible parts indicate that the han was built during the reign of Alaeddin Keykubad, but no date is given (reign: 1220-1236).



A third inscription was found to the right of the covered section portal, which provided a date of 1070H (1660). This inscription concerned the renovation work done at this time. This inscription was mentioned in several sources and was seen and published by Erdmann, but it has since been lost. Erdmann read that the inscription stated that the han was restored in 1660-65 under the orders of Sadrazam Abü Salim ibn Abıl Hasan Köprülü Mehmet Paşa of Malatya, the famous vizier of Sultan Mehmet IV “The Hunter”. The architect for the restoration was Hasan Ağa. These repairs were done by the Ottoman Grand Vizier Köprülü Mehmet Paşa, who undertook a large-scale public improvement program in the region at that time.



REIGN OF

This han was built during the reign of Sultan Izzeddin Kaykavus I for the hall and Alaeddin Keykubad I for the courtyard. It was restored in 1660 during the Ottoman period by the famous Mehmed Köprülü, vizier of Sultan Mehmed IV.

PATRON
This complex was founded by the doctor of Alaeddin Keykubad I, Ebu Salim Ben Ebil-Hasan el-Sammas from Malatya. He was a Christian active in religious affairs (Hekim = doctor; al sammas = deacon). He was a religious scholar and physician from Malatya, who is mentioned in historical sources and in the inscription of the han. His name was given as Ebul Hasan Ela-Şamas El-Hekim Selim El-Malati in sources, but little information exists about him.


BUILDING TYPE

Covered with open courtyard (COC)
Covered section is smaller than the courtyard

Covered section with a central aisle and 1 aisle on each side running perpendicular to the back wall

6 bays of vaults


DESCRIPTION
The Hekim Han faces northwest. It belongs to the group of Seljuk hans comprising a covered section used for lodging and an open courtyard with service areas. Although it adheres to the typical plan of sultan hans, the Hekim Han has two distinguishing features: firstly, it is extremely plain and almost devoid of decoration; secondly, the trilingual inscription in Arabic, Armenian and Syriac, located in an inconspicuous part of the hall, is unique.


Courtyard: The square shape of the courtyard is unusual, as most courtyards are rectangular. It is surrounded on all sides by small rooms, even on the covered section side, which is again atypical. The courtyard is wider than the covered section, and its walls are not square to each other or of the same thickness, probably due to modifications done during the Ottoman era repairs.



The mosque was believed to have been located in a a room on the courtyard, but following the renovations during the Ottoman period, its traces have been lost.



The iwan design of the courtyard seen in the Hekim Han is a unique application. The iwans head to the center of the courtyard as in the Tokat Pazar Hatun Han and the Konya Kizilören Han, among others. However, in the other hans, the iwans are only on a single side or on two opposing sides; but in the Hekim Han there are iwans heading into the courtyard from all four directions. The plans of Mamluk hans to the south must have influenced this choice of plan, as they have iwans in four directions as well. On the other hand, there are some caravanserais in Khorasan which were built with this same plan configuration, the most well-known being the Ode Mergan Caravanserai.



Covered section: The rectangular covered section of the han is divided into three naves running vertically to the rear wall to the northwest. Other hans with three naves include the Kuruçeşme, Kizilören and Tokat Pazar Hatun Hans. The naves comprised two support lines connected to each other by six pointed arches, carried by five T-shaped piers in each of the lines. The central nave is wider and higher than the side naves and measures 7.10m wide.



The support arches above the piers rest on profiled capitals in the central nave. The piers are connected to each other in the side naves and in the central nave by horizontal support arches. Lighting is provided by one slit window in each of the naves on the northwest wall. A fireplace niche, made of basalt rock, is built into the wall of the central nave. This fireplace niche must have been added during a later renovation in the Ottoman period. There are no traces of loading platforms; however, the sides of the piers were raised by two lines of stone walling which could indicate the existence of platforms.



The walls of the covered section are reinforced on the exterior by three, equally-spaced support towers. The support towers were constructed of smooth-faced stones, different from the materials used in the bearing walls. These towers were probably added during a later renovation in the Ottoman period.



The crown door is not original and was rebuilt during the renovation made in the Ottoman period. The entrance was designed with an iwan, a common application in Seljuk hans. There is one room on each side of the iwan, reached by passing through a recessed arch. An inscription plaque is located over the door, and here is set the noteworthy text in three different languages.



The han was built of undecorated smooth-faced stone blocks. Large stones were used in the foundation courses of the walls of the covered section, gradually decreasing in size as the wall rose. The walls were made with the rubble wall technique. Reuse spolia material is seen in one place only, for the reinforcing of a bearing pier. Pitch-faced stones were generally used for the courtyard walls. Many mason’s marks can be seen on the surfaces of the wall stones.



The repairs made in the Ottoman period were mostly made in the courtyard. Fireplace niches were placed inside the rooms and chimneys were established in the vaults. A door was opened on the side of the courtyard. The main door with the inscription plaque was restored at this time.



There are several interesting structures near this han. Tucked hard against the northeastern wall of the han is an Ottoman period bath with its accompanying furnace room. The bath is reached from an outside entry at the rear. A substantial mosque built by Köprülü Mehmet Paşa is located 50 m to the southeast. There is also a charming small covered bazaar to the left of the han.



DECORATION

There is no decoration in this han. There is also a spolia stone capital over one of the arch springings on the eastern side of the central aisle of the covered section. The most significant elements are the curved profiled moldings along the courtyard.



DIMENSIONS
1,700m2 (total internal area)
Area of hall: 550m2
Area of courtyard: 870m2 (15 wide x 17.5 deep)

STATE OF CONSERVATION, CURRENT USAGE
The han, in good condition, is located in the middle of the town, in the center of a nest of shops which form a small bazaar. It underwent a major restoration from 2006-2009, and glassed-in shop-fronts were installed in the courtyard cells. It is currently used by the municipality for various civic events (eg. the municipal circumcision festival in summer). There are plans (2009) to raze the small adjoining bazaar to allow a clearer space around the western area of the han.


BIBLIOGRAPHIC REFERENCES

Acun, H. Anadolu Selçuklu Dönemi Kervansarayları. Ankara: Kültür Bakanlığı Publications, 2007, p. 501.

Altun, Ara. An Outline of Turkish Architecture in the Middle Ages, 1990, p. 200.

Bayrak, M. O. Türkiye Tarihi yerler kılavuzu, 1994, p. 470.

Bektaş, C. Selçuklu Kervansaraylari, Korumalari ve Kullanilmalari Üzerine Bir Öneri = A proposal regarding the Seljuk caravanserais, their protection and use, Istanbul, 1999, pp. 130-131.

Eravşar, Osman. Yollarin Taniklari (Witnesses of the Way), 2017, pp. 262-267.

Erdmann, Kurt. Das Anatolische Karavansaray des 13. Jahrhunderts, 1961, pp. 63-67, no. 18.

Ertuğ, Ahmet. The Seljuks: A Journey through Anatolian Architecture, 1991, p. 78.

Findik, Nurşen Özkul. “Hekim Hanı”, Anadolu Selçuklu Dönemi Kervansarayları. Ankara Kültür Bakanlığı Publications, 2007, pp. 104-121 (includes bibliography).

Hillenbrand, R. Islamic Architecture: Form, function and meaning, 1994, fig. 6.41, p. 552.

Karpuz, Haşim. & Kuş, A. & Dıvarcı, I. & Şimşek, F. Anadolu Selçuklu Eserleri, 2008, vol. 2, pp. 179-80.

Kiepert, R. Karte von Kleinasien, in 24 Blatt bearbeitet, 1902-1916.

Kuban, D. Selçuklu Cağinda Anadolu Sanati, 2002, p. 242.

Moltke, H. Moltke’nin Türkiye Mektupları, 1963.

Redford, S. “Reading Inscriptions on Seljuk Caravanserais”. Eurasiatica 4, 2016, pp. 221-233.

Ritter, C. Kleinasien: teil 1: Erdkunde von Asien, 1858-59, p. 836.

Tozer, H. F. Turkish Armenia and Eastern Asia Minor. London, 1881, p. 202.











Eravşar, 2017. p. 262; photo I. Dıvarcı



Eravşar, 2017. p. 265; photo I. Dıvarcı



Karpuz, Anadolu Selçuklu Eserleri (2008) v.2, p. 179



Karpuz,Anadolu Selçuklu Eserleri (2008) v.2, p. 180.



the countryside surrounding the Hekimhan



















click below for more views (2009)

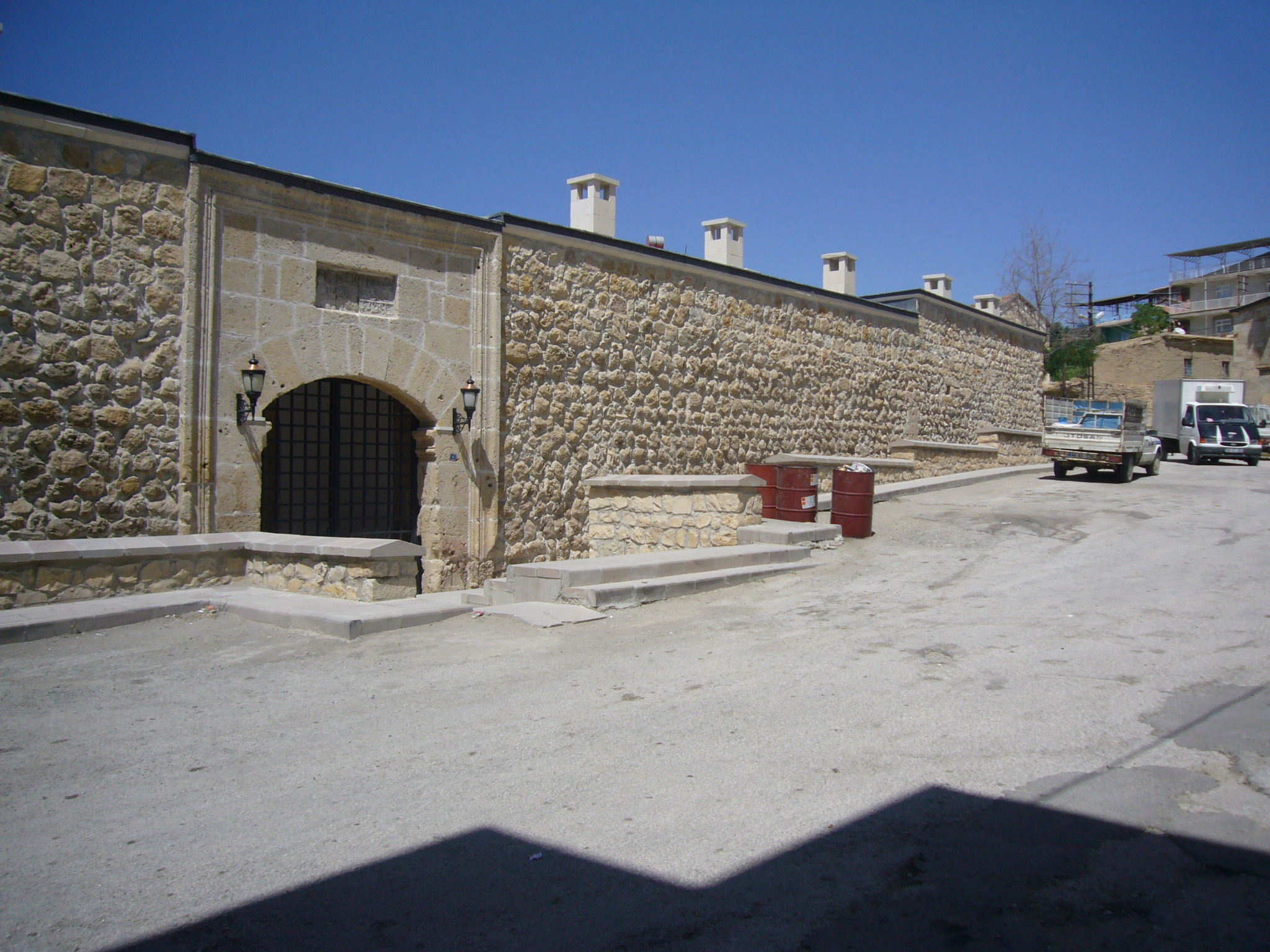

Facade and main entry portal

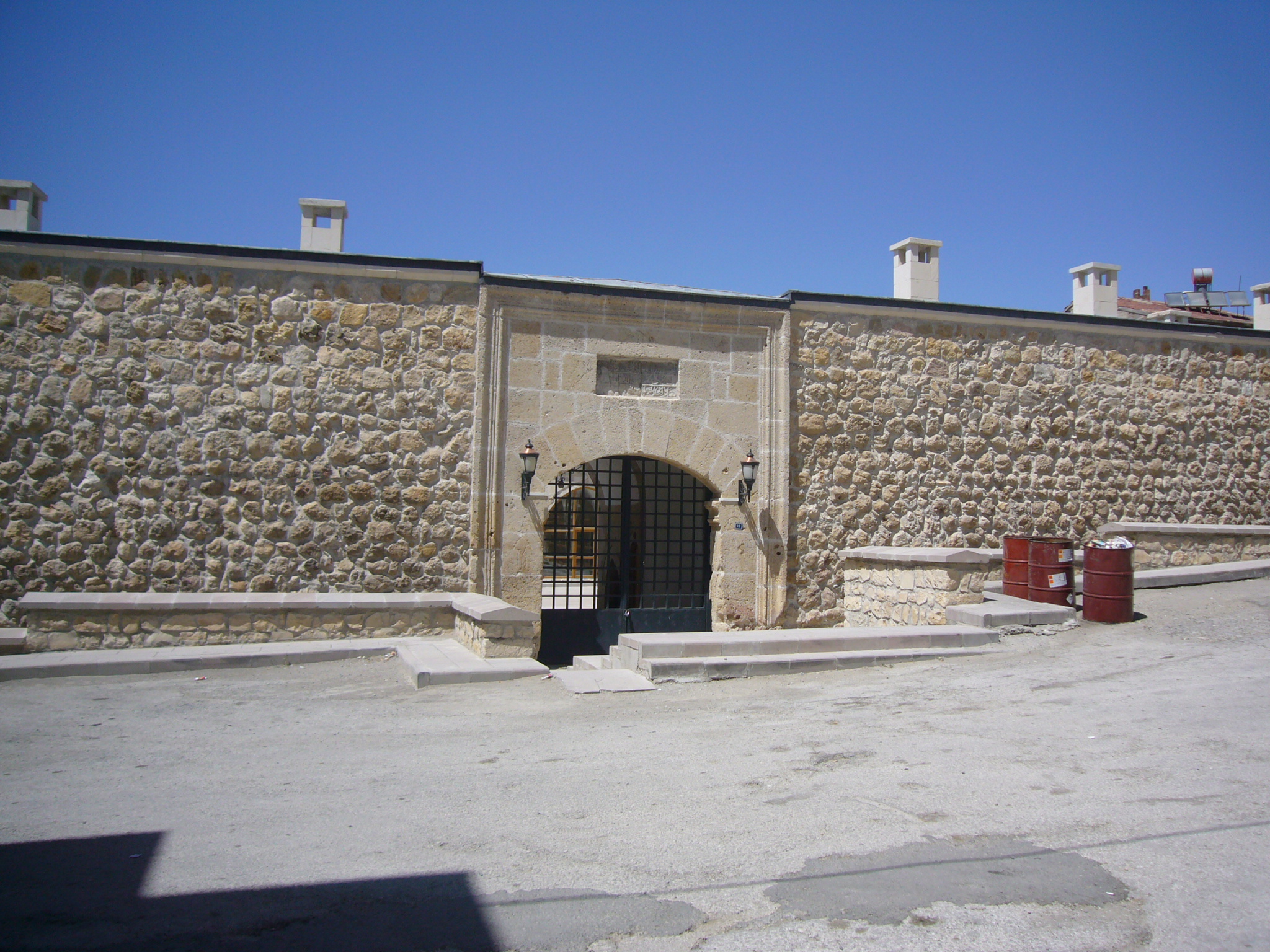

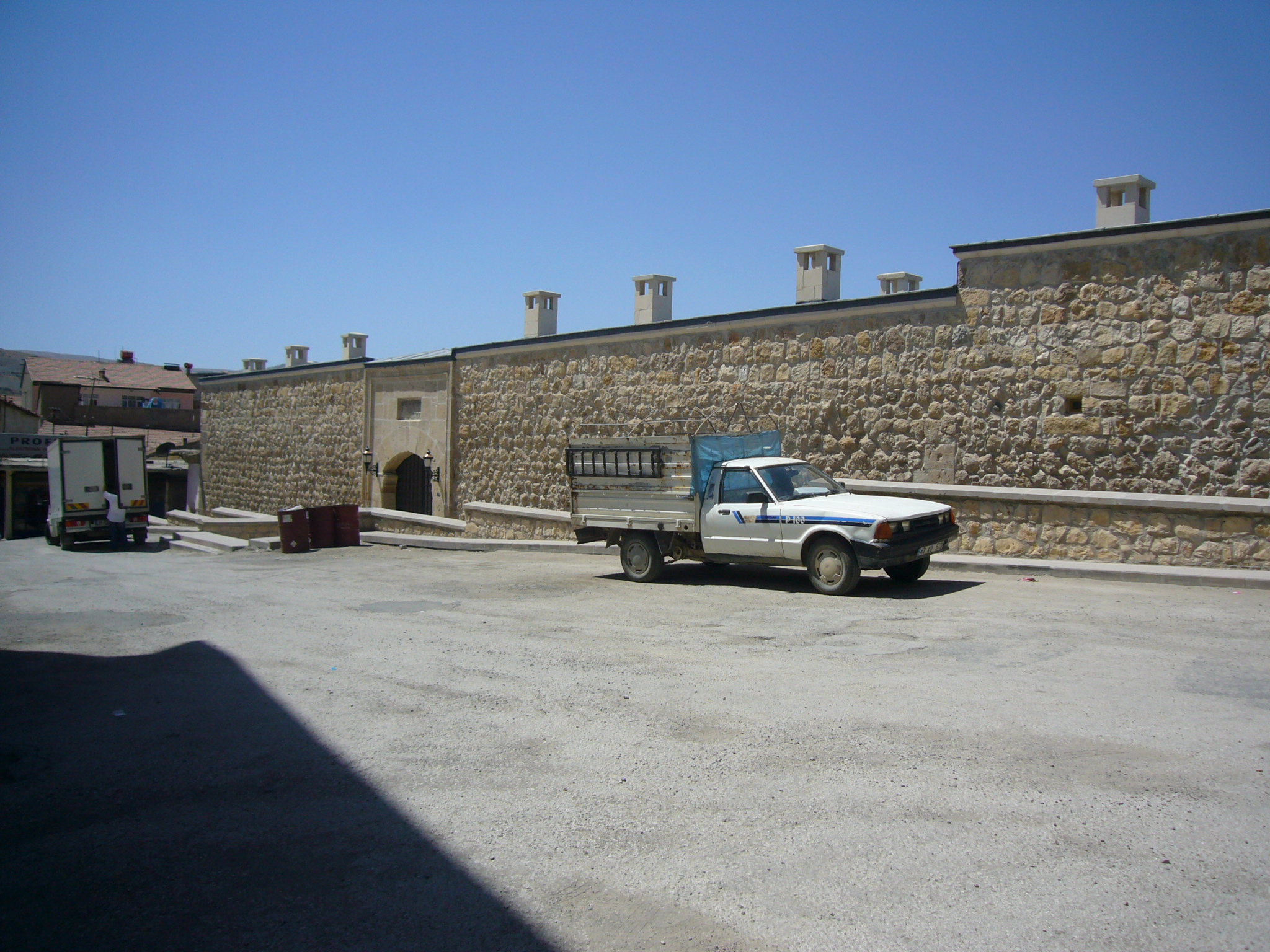

Main facade

Facade, view from east

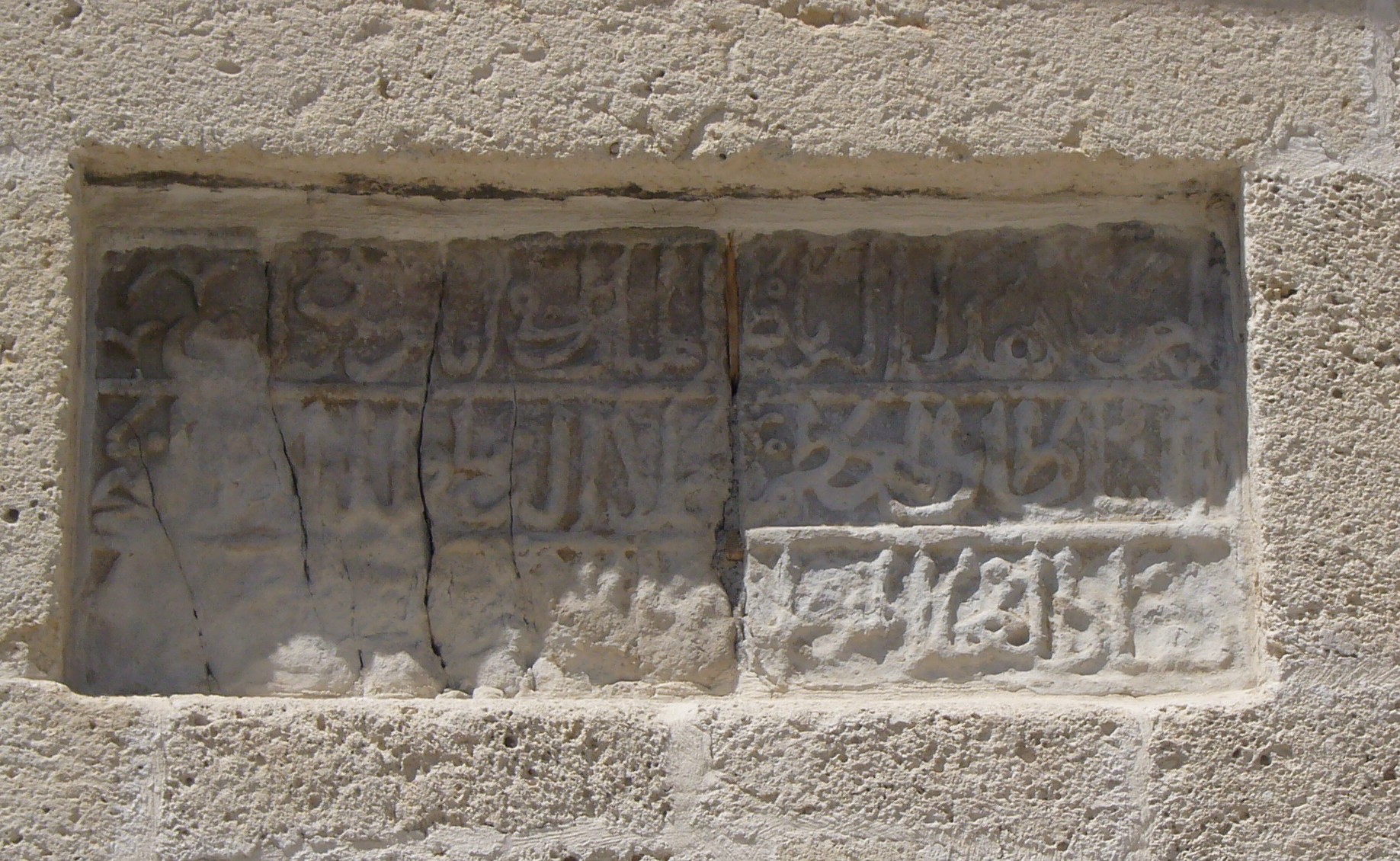

Inscription plaque over main entrance door

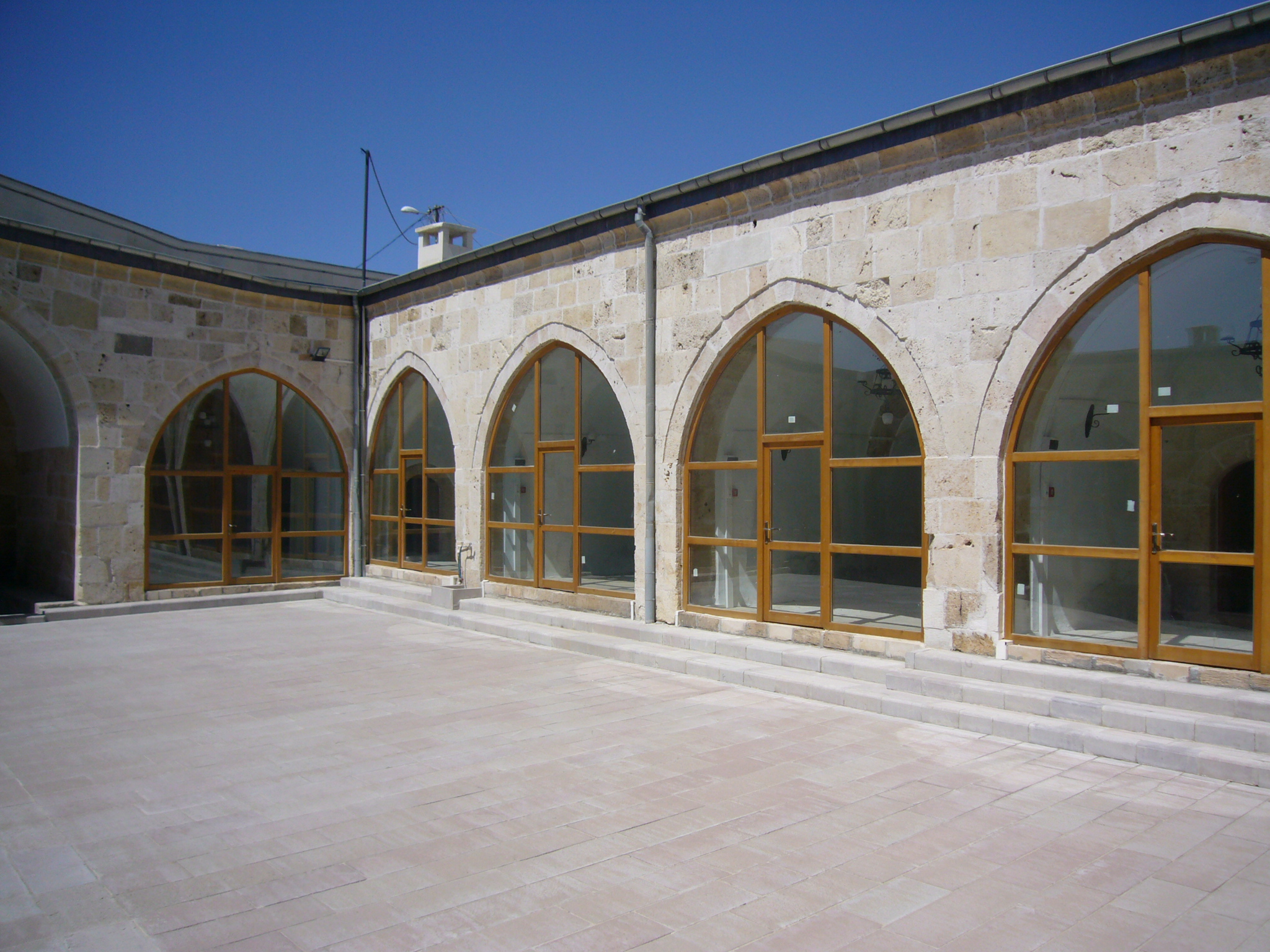

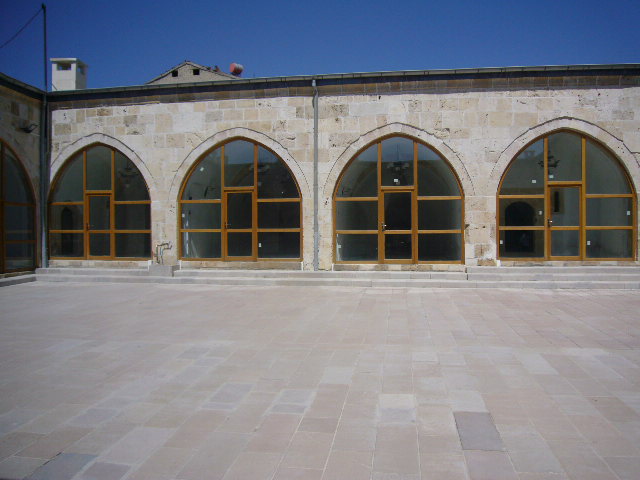

Courtyard, covered cells, east

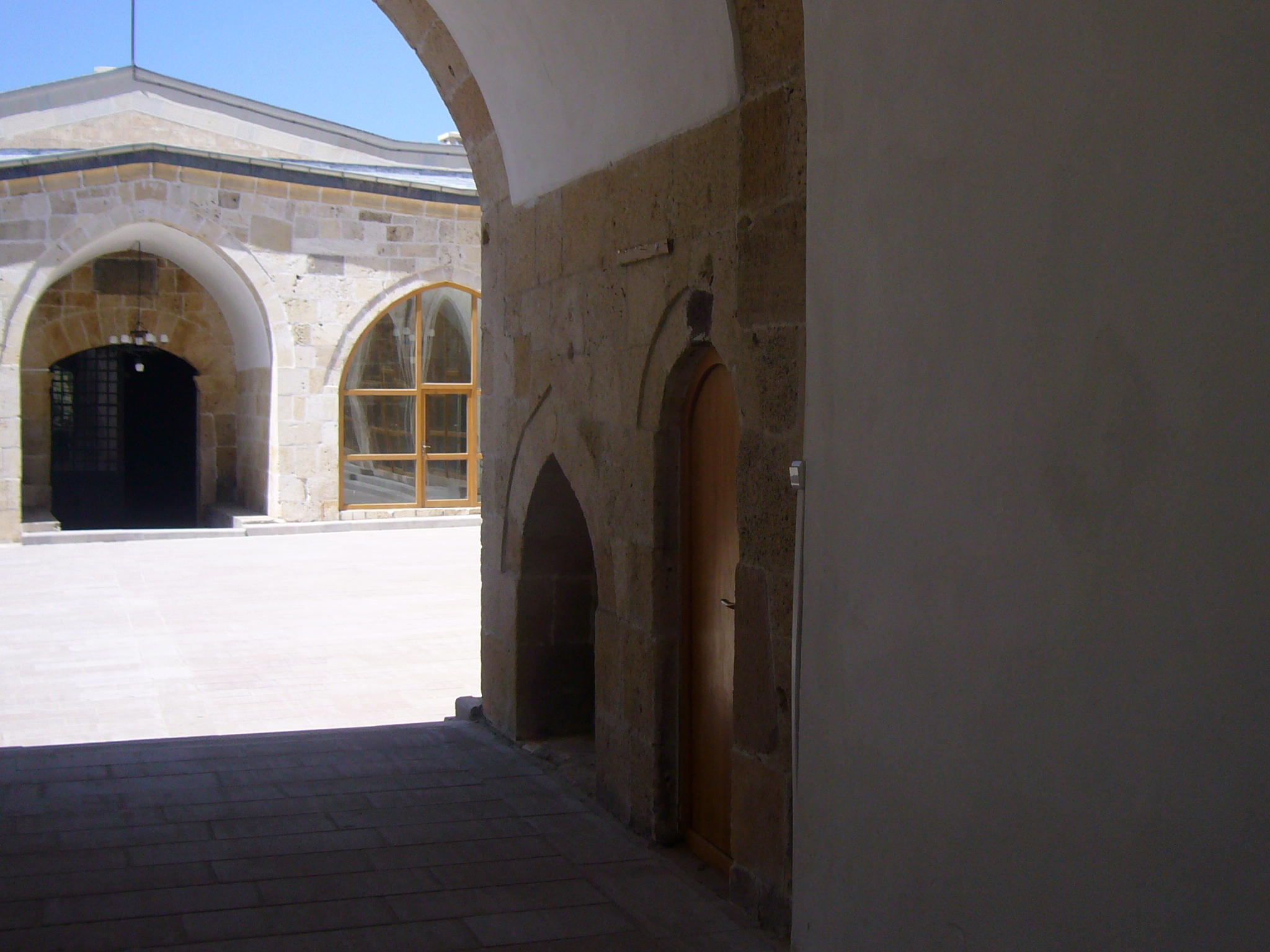

Entrance vestibule, eastern side

Courtyard, covered cells, east

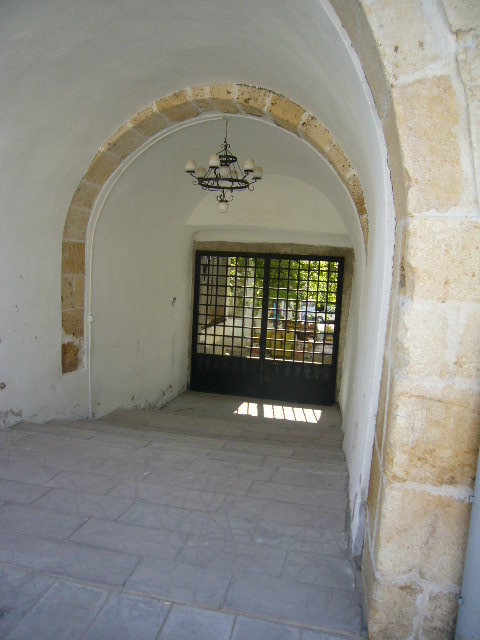

Courtyard, exit on western side

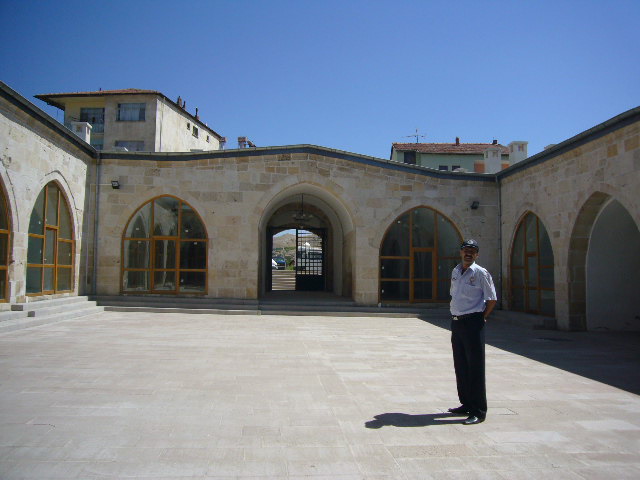

Courtyard, view south towards entry

Courtyard, covered cells, west

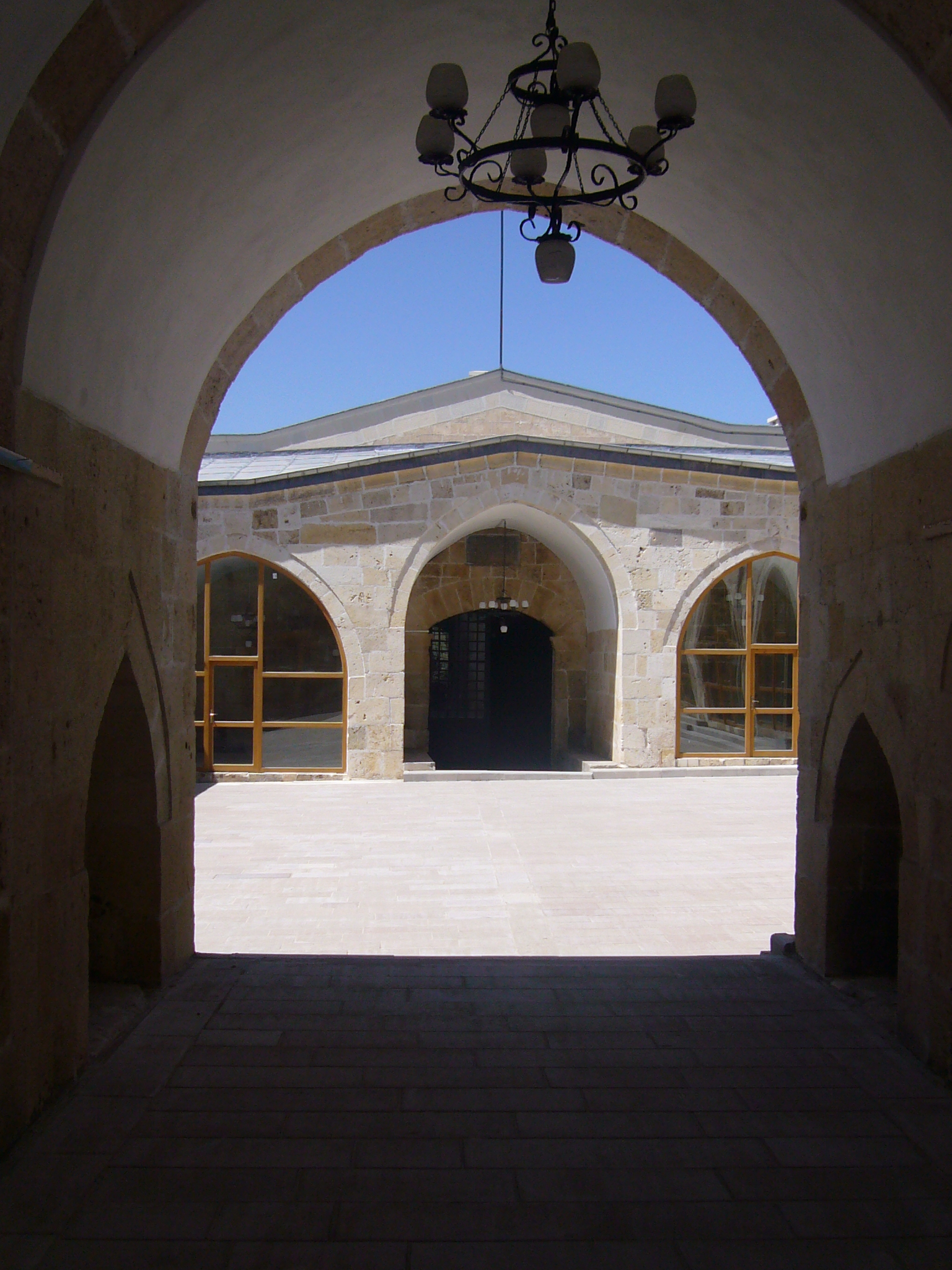

View north onto courtyard from entry

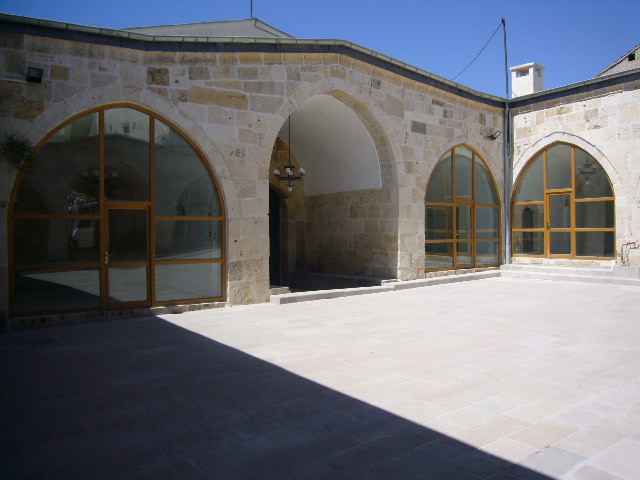

Courtyard, entry to covered section

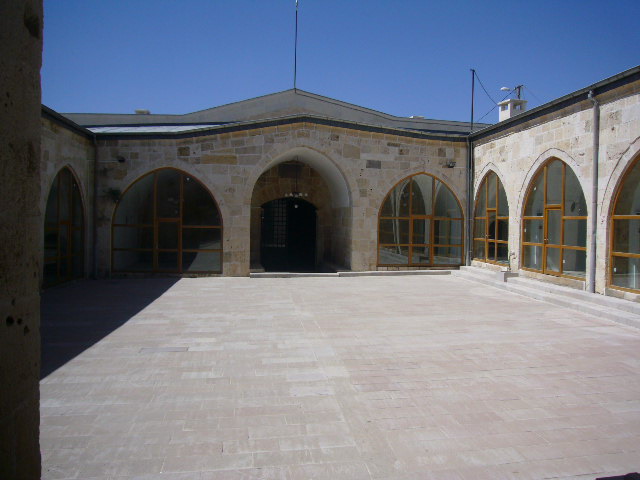

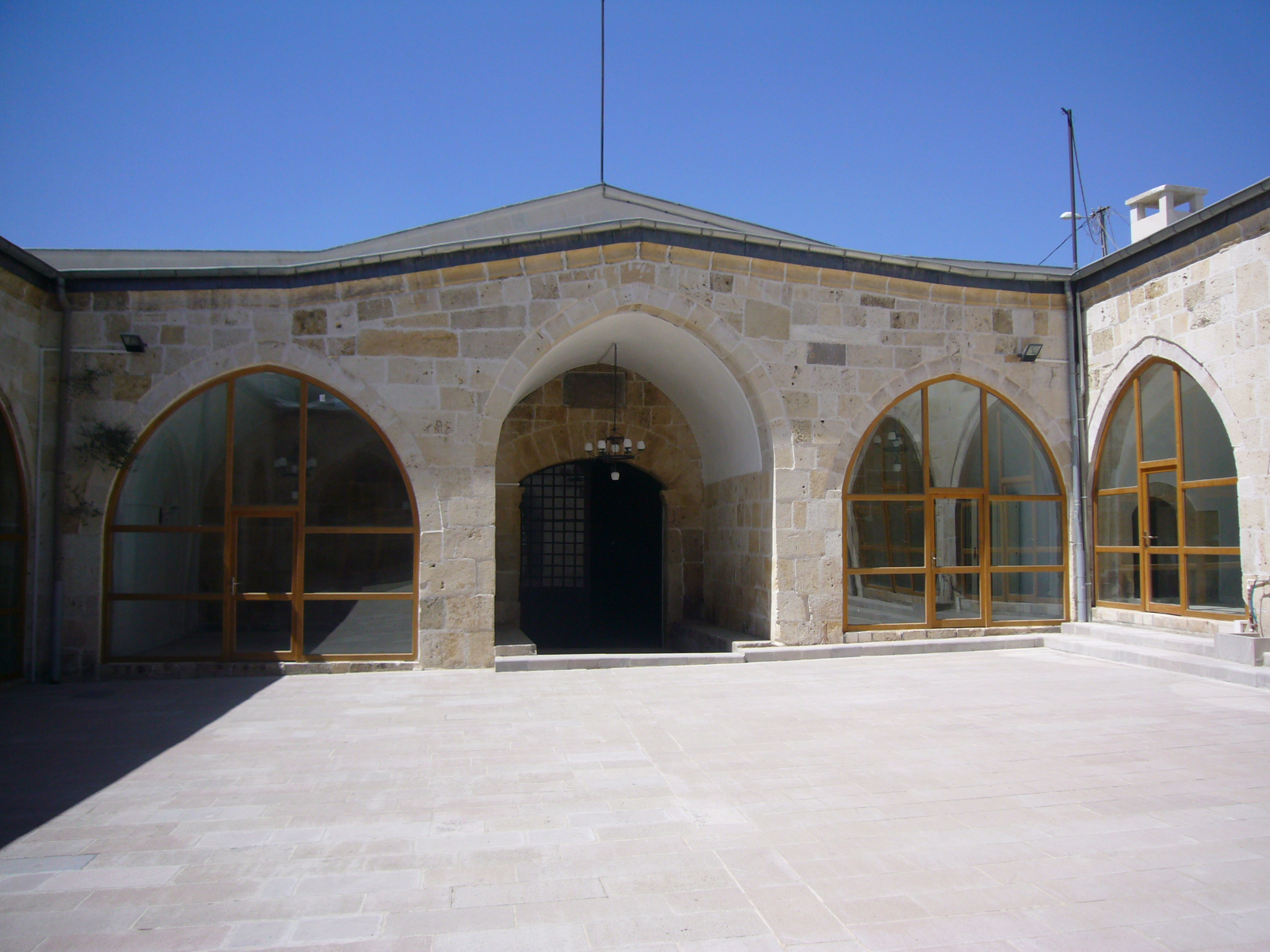

Courtyard, view north to covered section entry

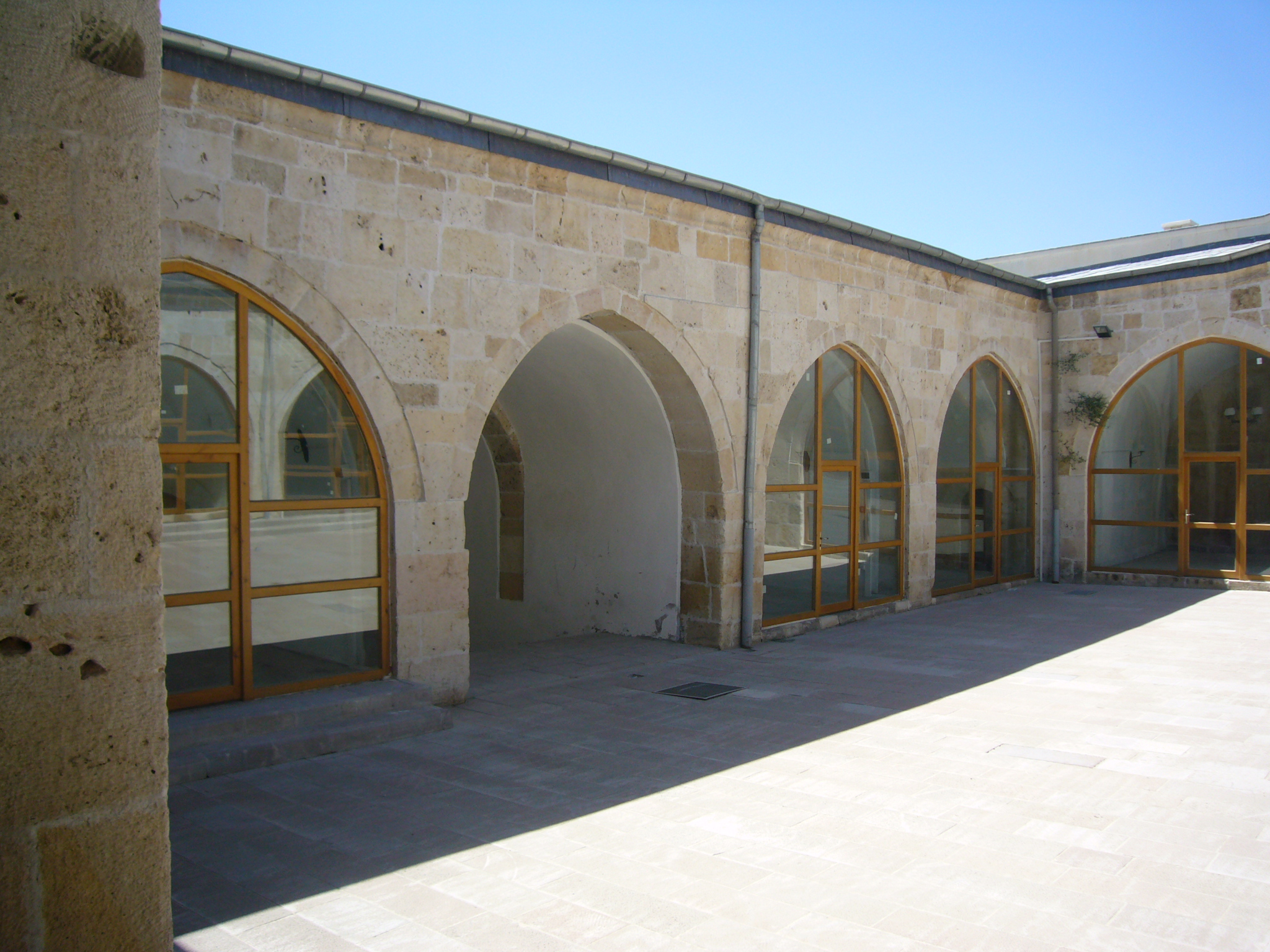

Courtyard, western side

Courtyard entry to covered section

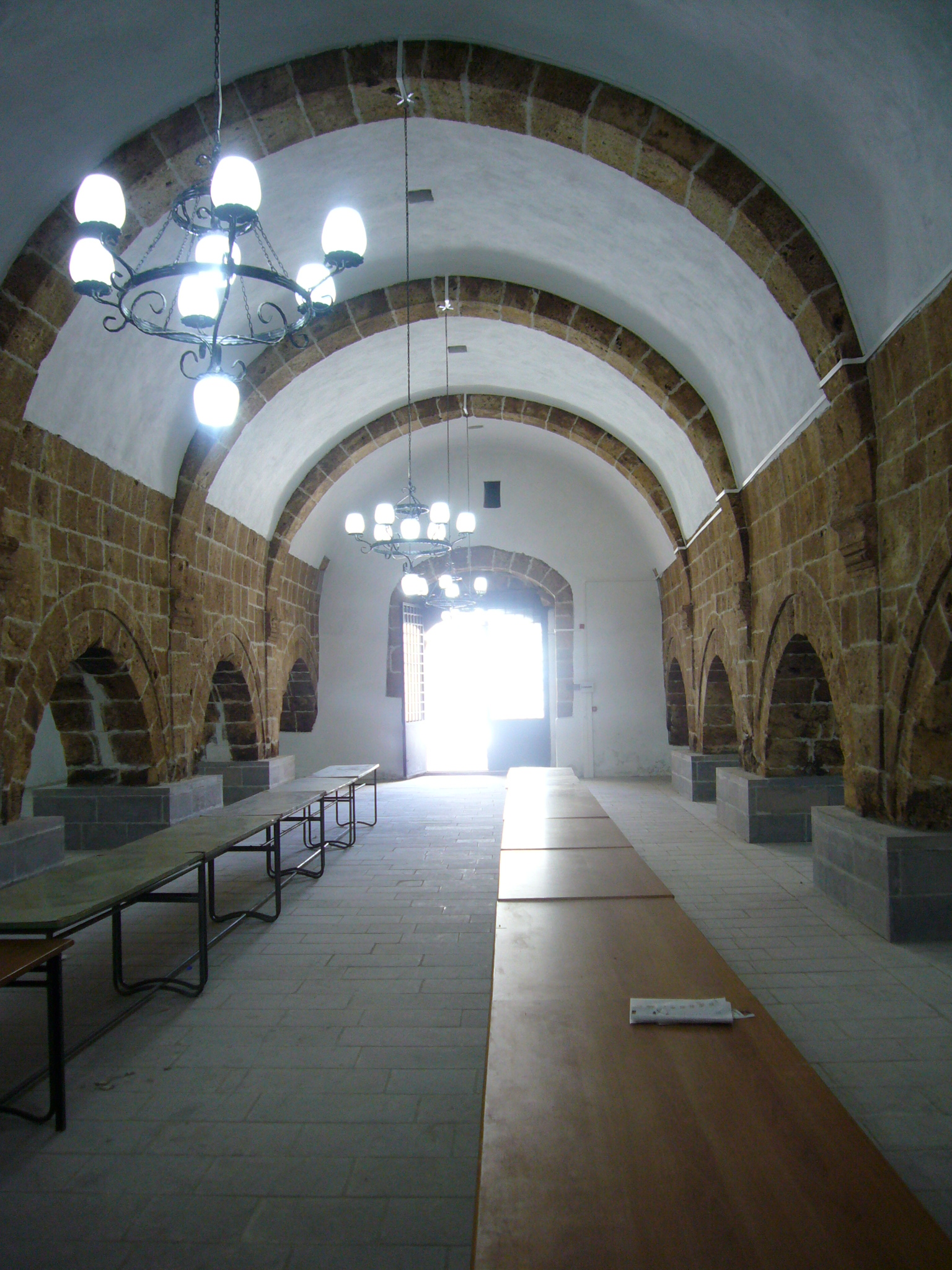

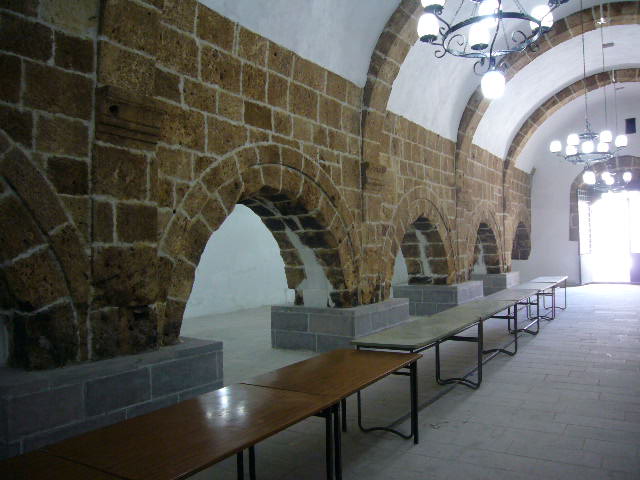

Covered section, central aisle, view south

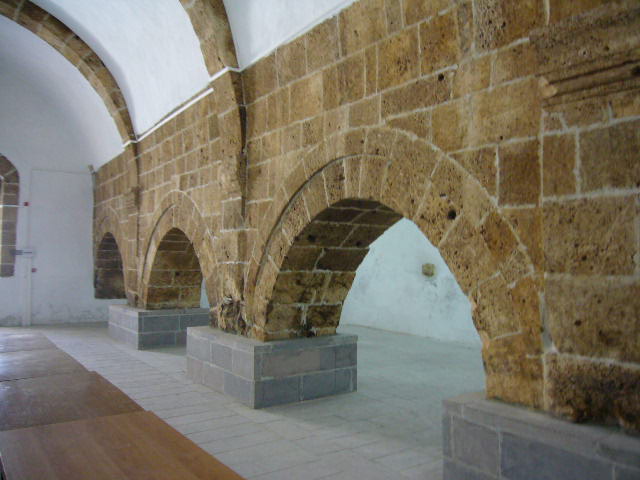

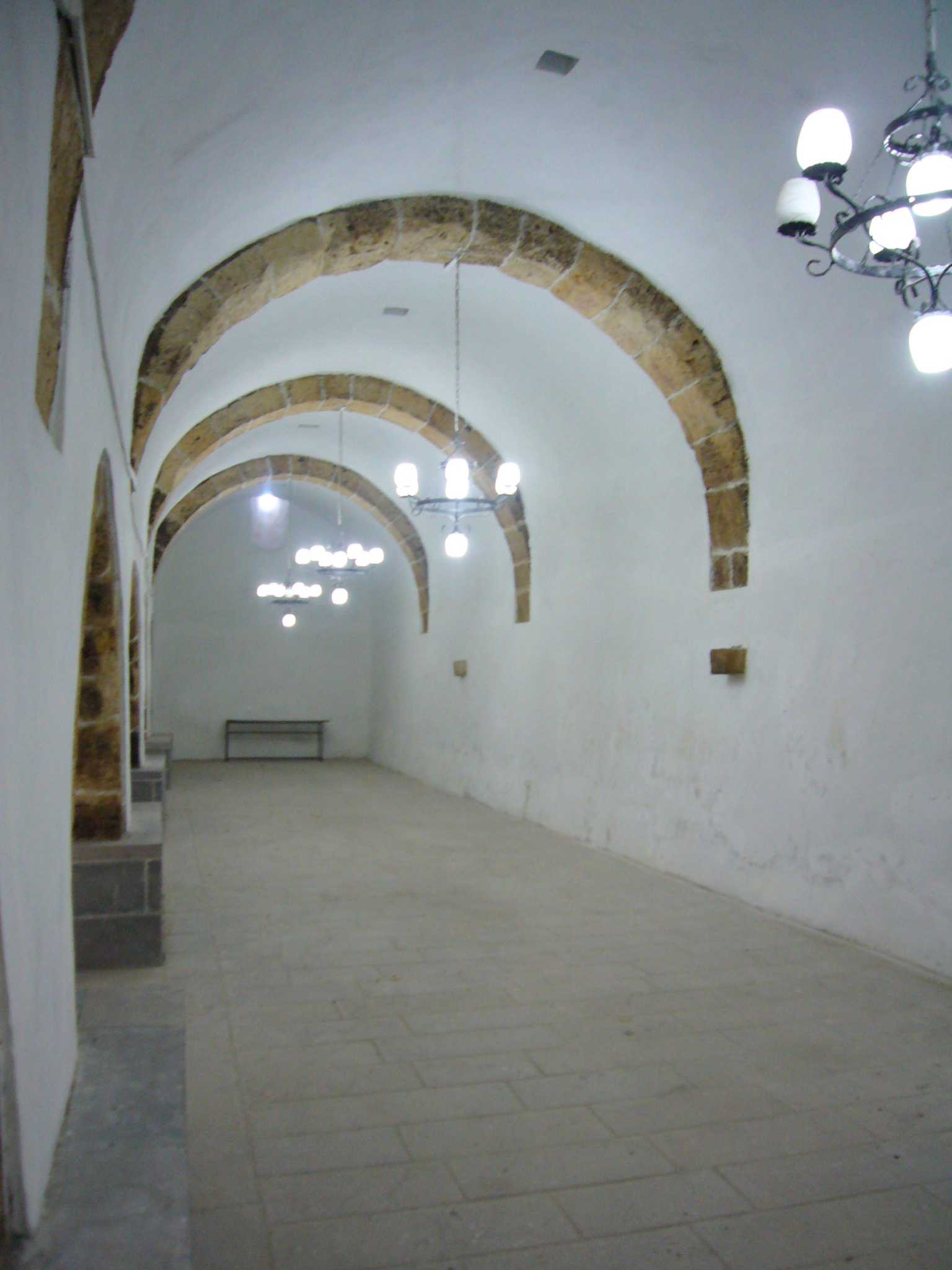

Covered section, view to east

Covered section, view to southeast

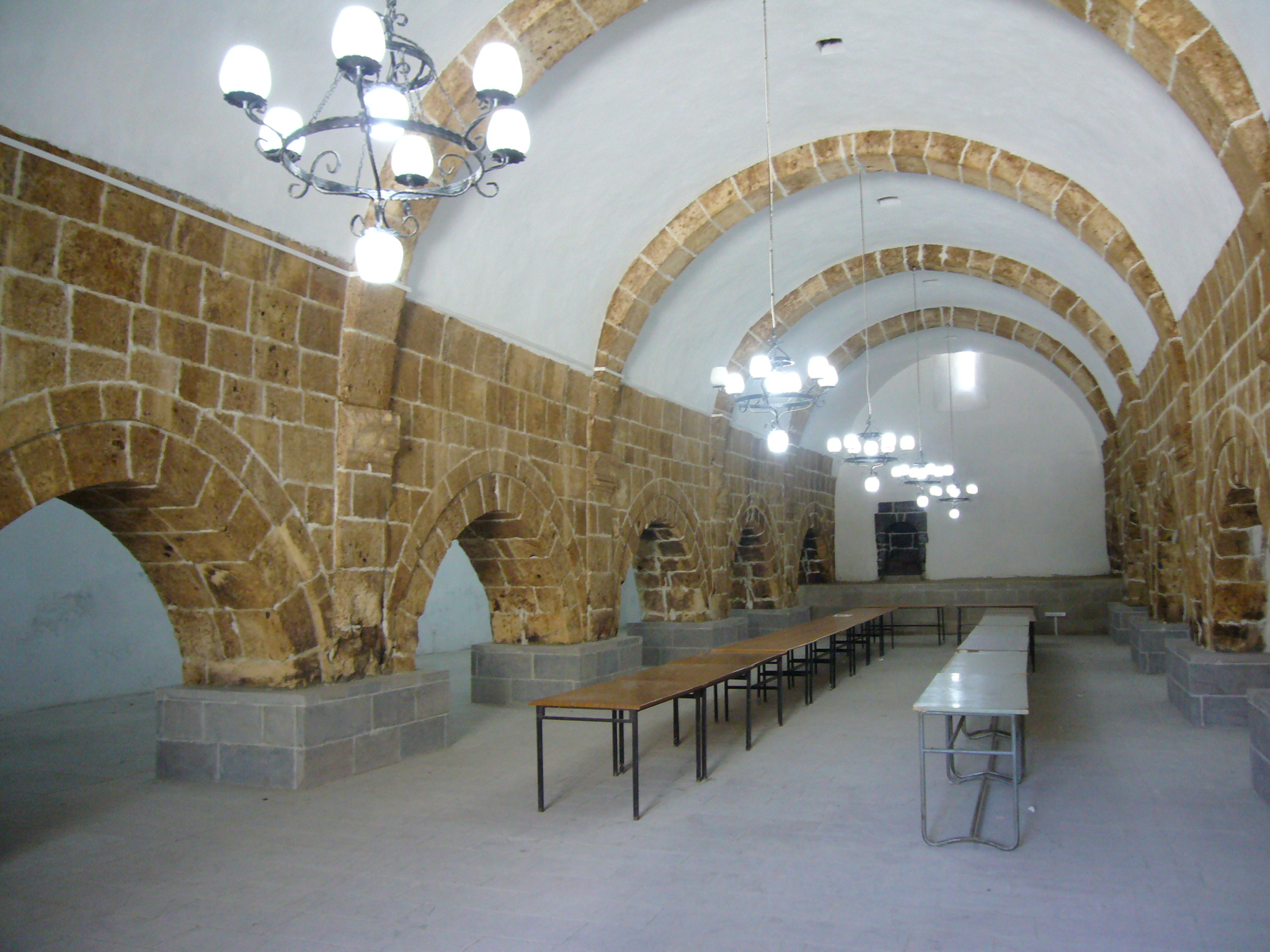

Covered section, central aisle

Covered section, central aisle

Covered section, eastern aisle

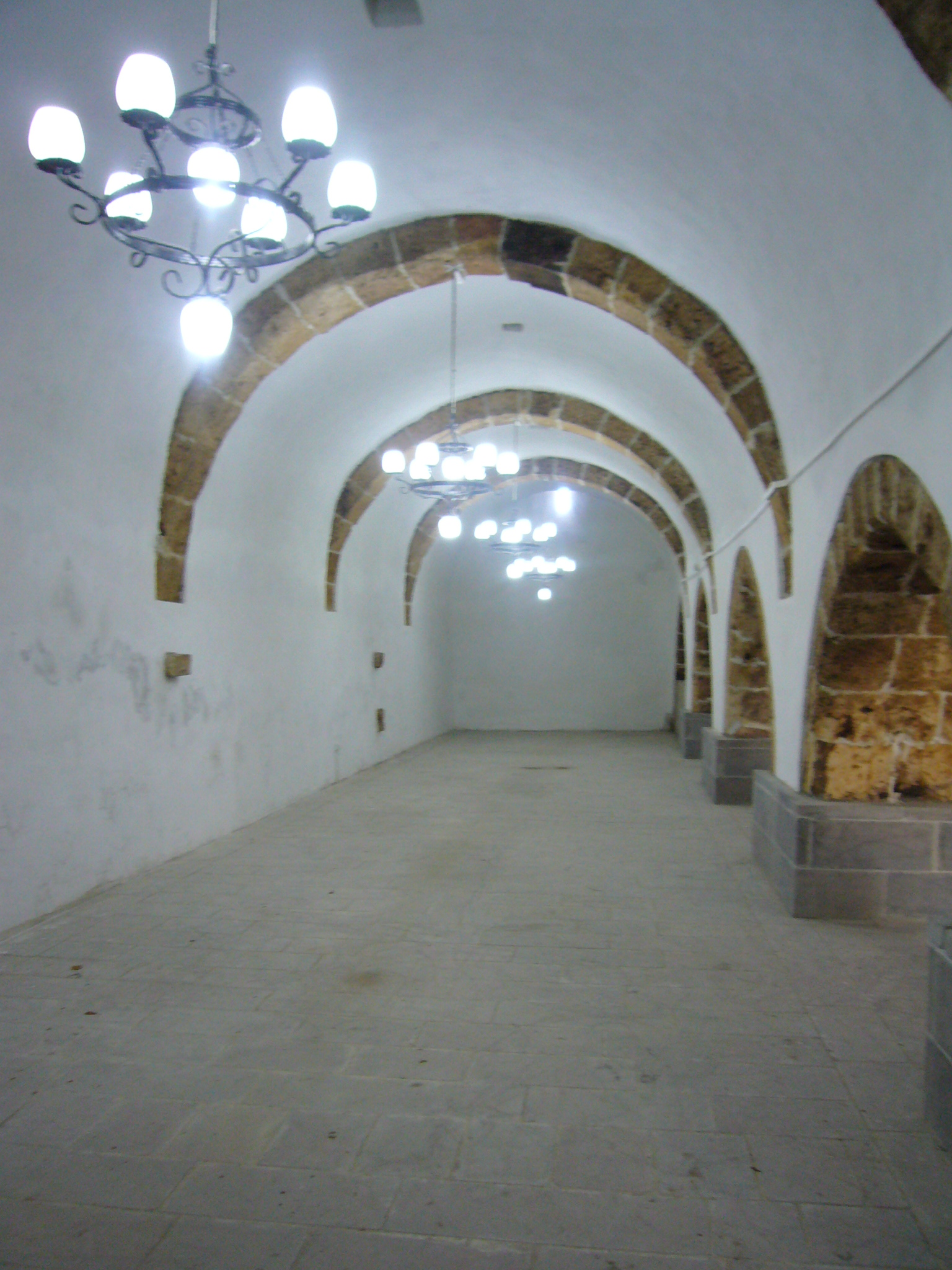

Covered section, western aisle

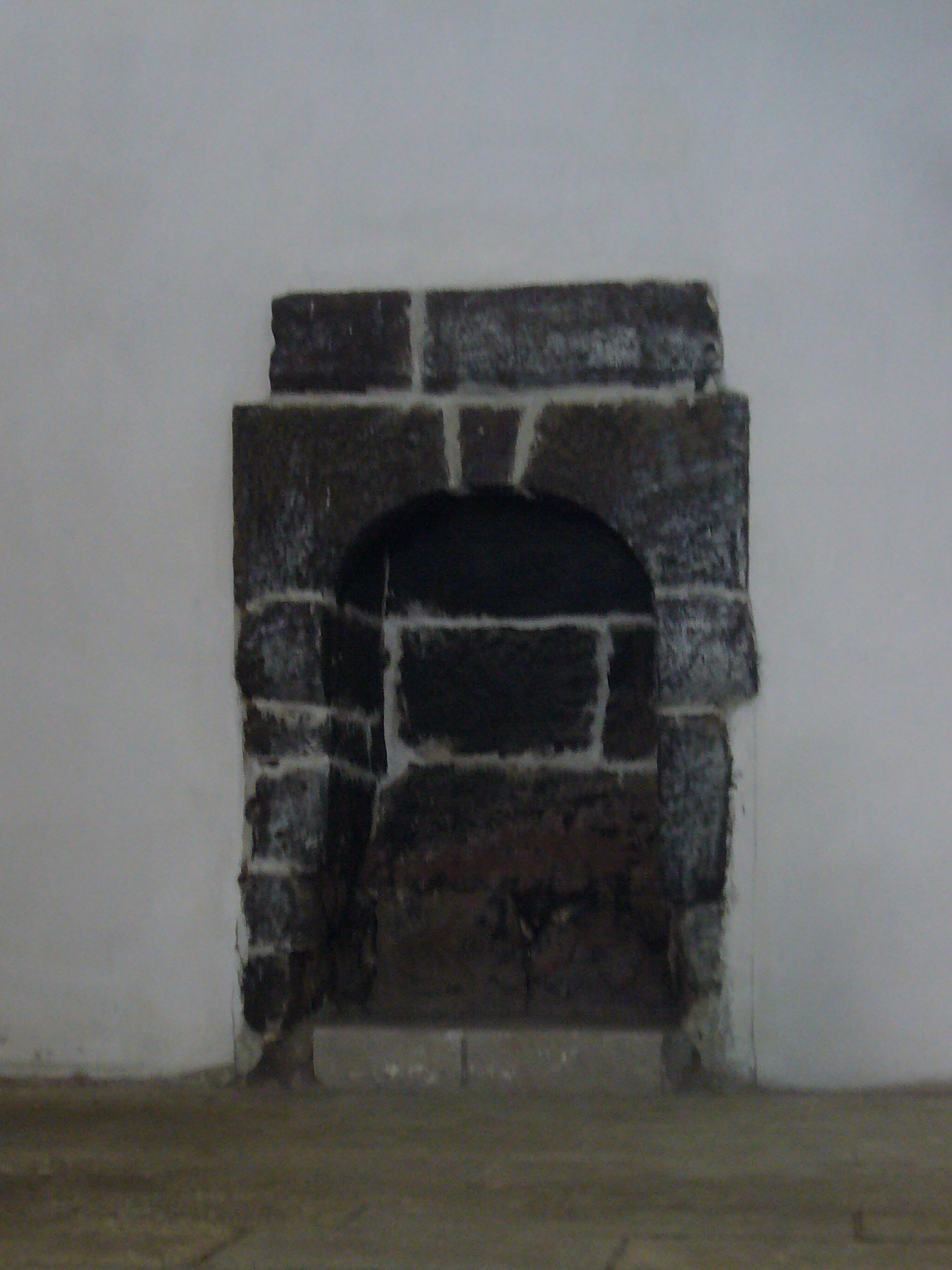

Covered section, fireplace in northern wall

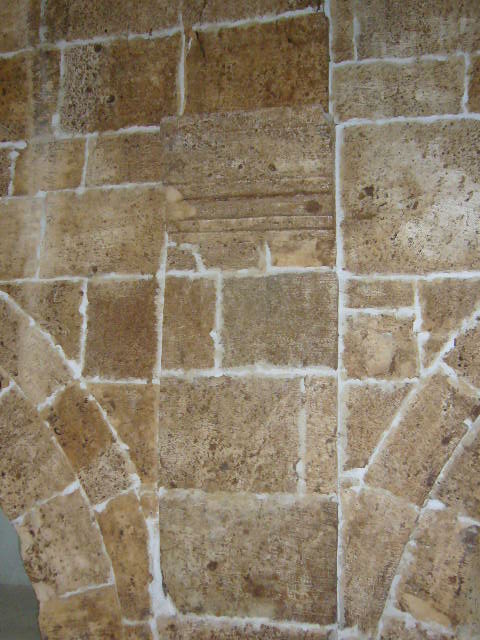

Spolia in covered section central aisle, east

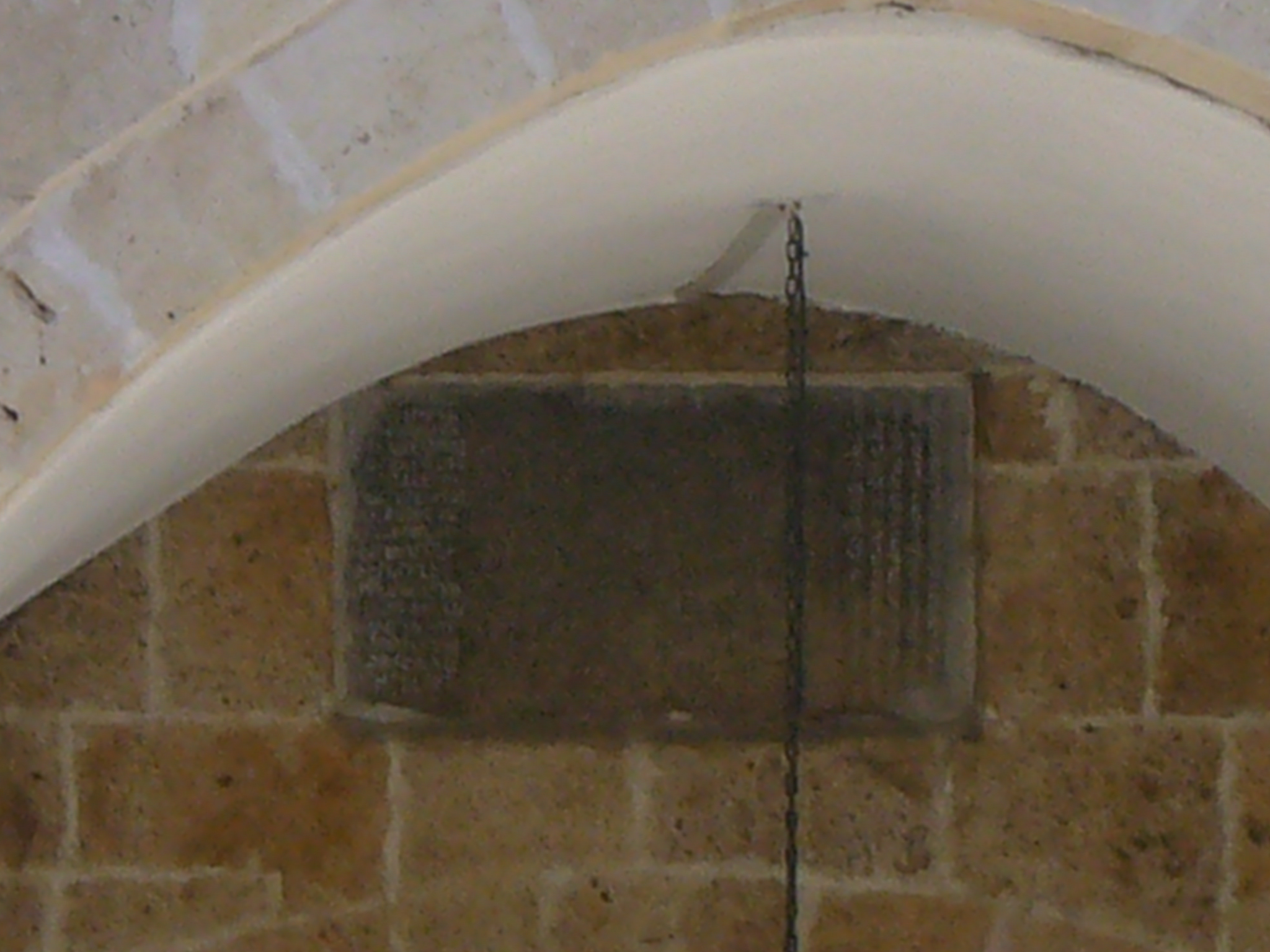

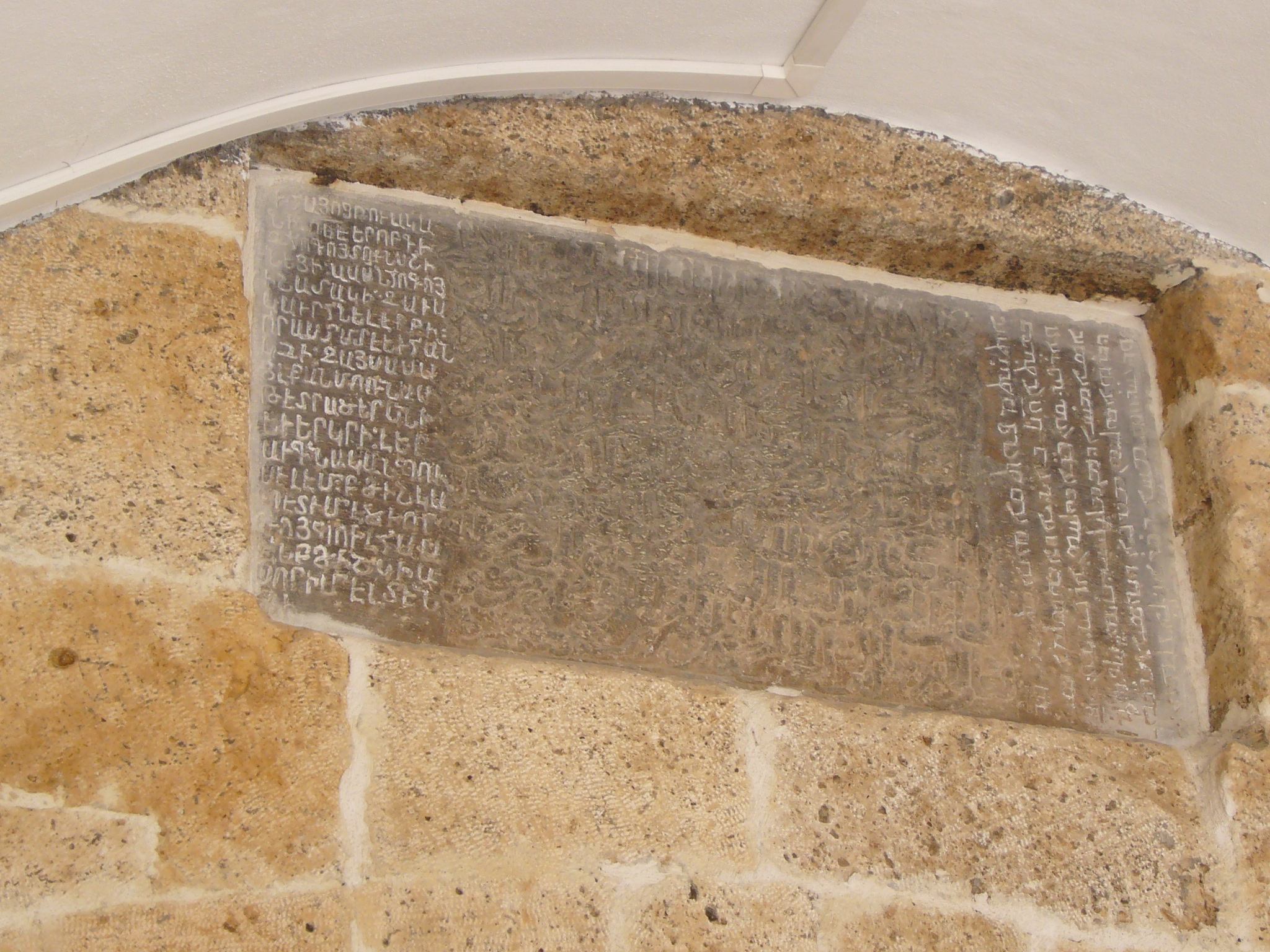

Trilingual inscription plaque over covered section entry

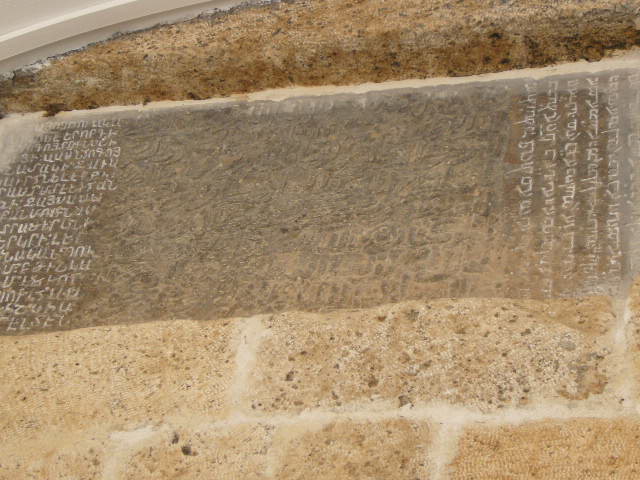

Trilingual inscription plaque over covered section entry

Trilingual inscription plaque over covered section entry

Trilingual inscription plaque over covered section entry

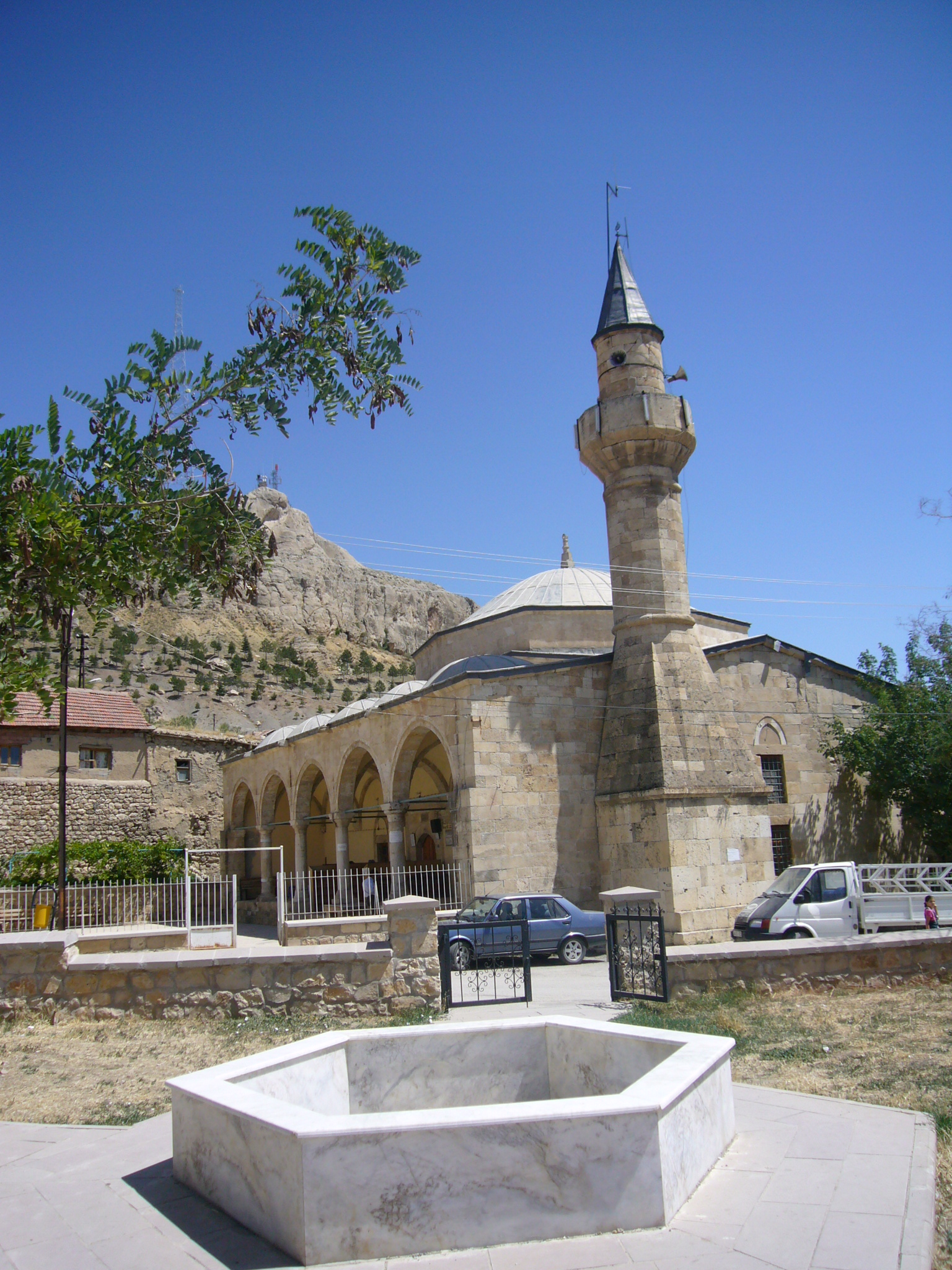

Koprulu Mehmet Pasha Mosque to the immediate east of the han

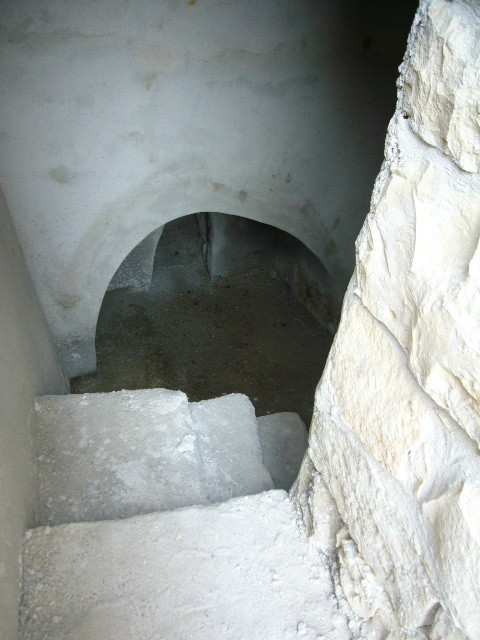

Bath furnace, exterior northeast

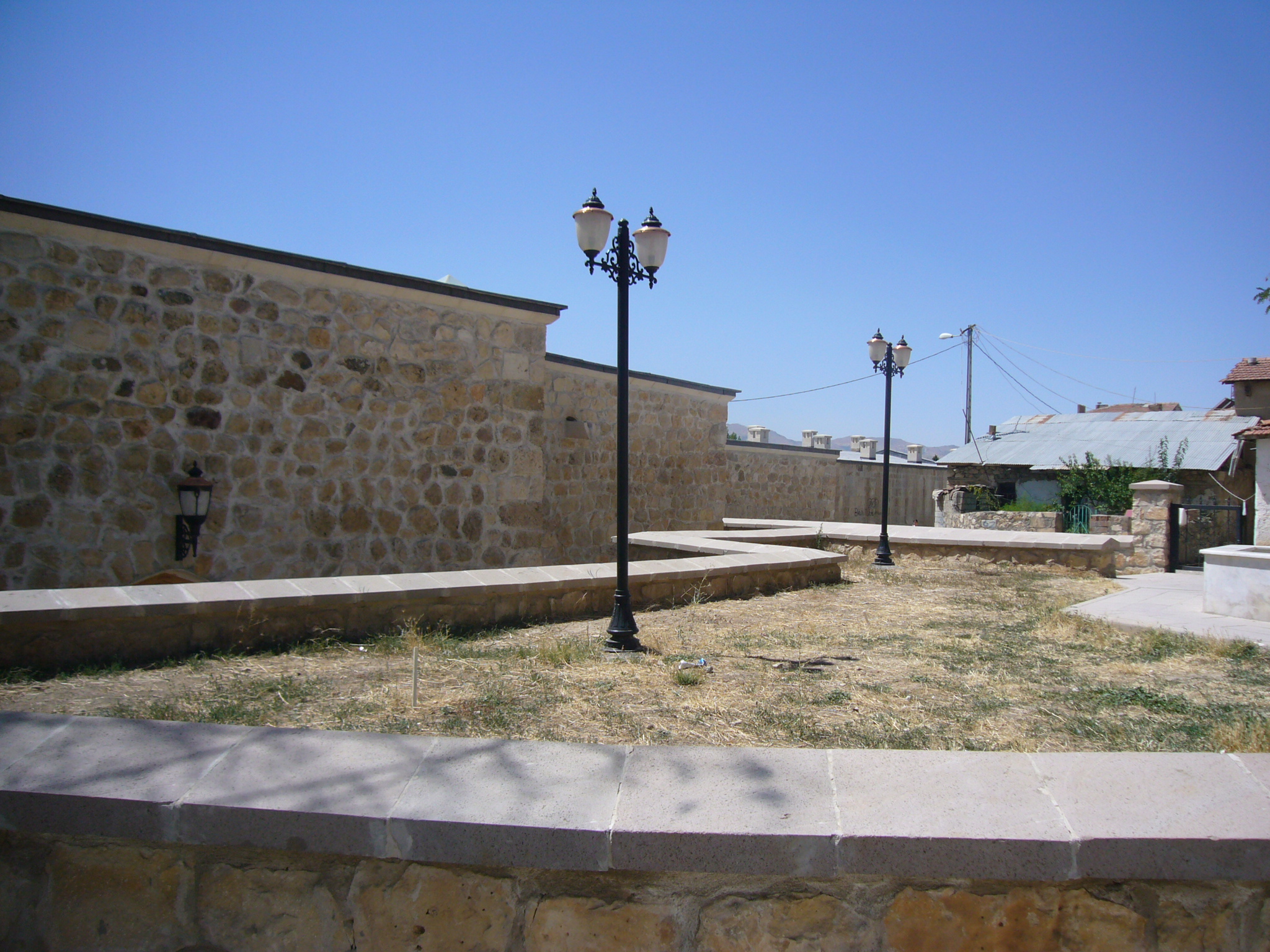

Exterior, eastern wall

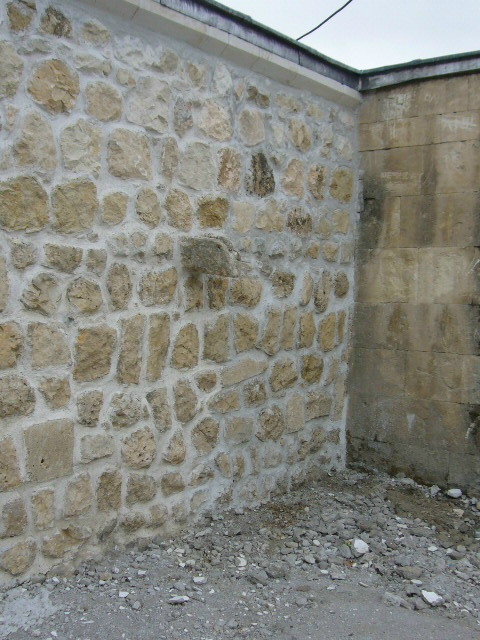

Downspout, eastern exterior wall

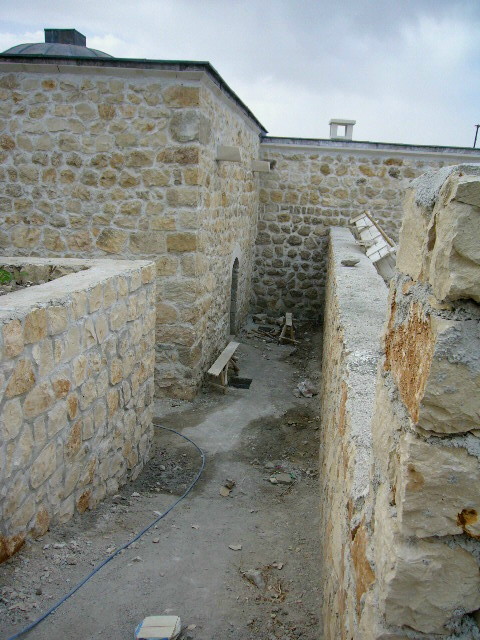

Entrance to bath

Exterior rear wall (north)

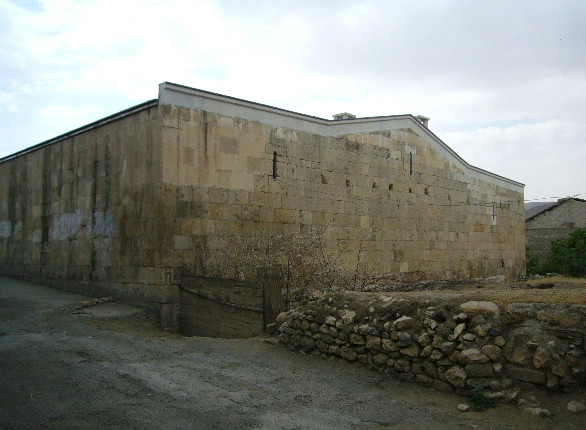

rear view

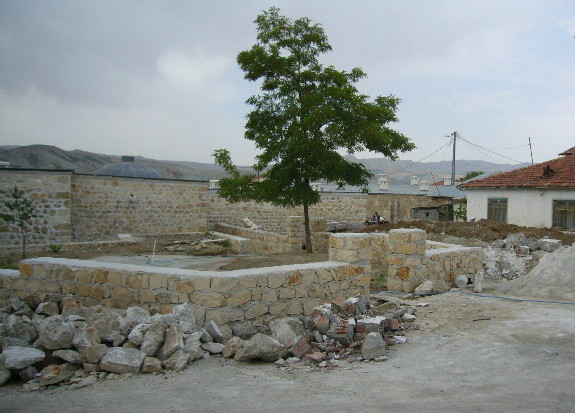

Exterior, view from east

countryside near Hekimhan
